Stainless steel dual v guide wheel
Stainless steel v guide wheel is made from 440 stainless steel.It is with high corrosion resistance. It can be used
PDF DOWNLOAD- Description
- Specification
- Application
- Cross No.
Features
• High corrosion resistance
• Stainless steel AISI 440 C ( DIN 1.14304, 9Cr18Mo)
• Nylon cage with fiberglass fill 25%
• Lubricant-Shell Alvania RLS2 grease or food grade grease ( as customer request )
• Acrylonitrile-butadiene steel sheet reinforced (NBR) seals
• Nylon cage with fiberglass fill 25%
• Lubricant-Shell Alvania RLS2 grease or food grade grease ( as customer request )
• Acrylonitrile-butadiene steel sheet reinforced (NBR) seals

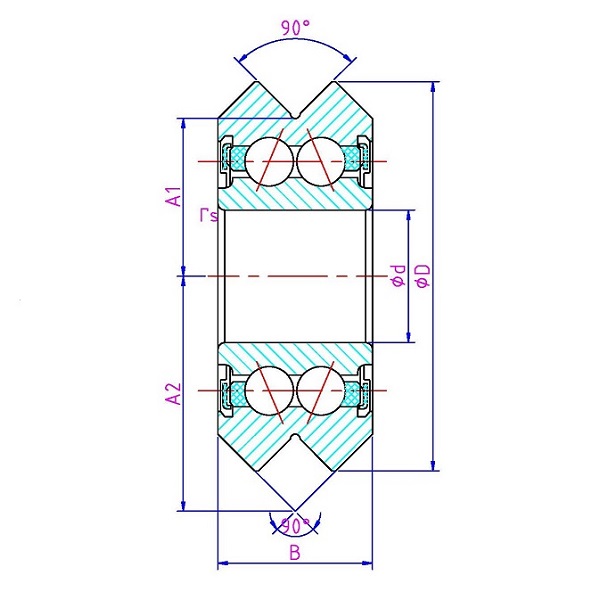

| C&H No. | Dimensions (mm) | Load Ratings(N) | Mass | ||||||
| d | D | B | A1 | A2 | rs | Radial | Axial | ≈(g) | |
| SSW0-2RS | 4.763 | 19.56 | 7.87 | 7.93 | 11.86 | 0.3 | 1260 | 297 | 11 |
| SSW1-2RS | 4.763 | 19.56 | 7.87 | 7.93 | 11.86 | 0.3 | 1260 | 297 | 11 |
| SSW2-2RS | 9.525 | 30.73 | 11.1 | 12.7 | 18.24 | 0.3 | 2730 | 632 | 38 |
| SSW3-2RS | 12 | 45.72 | 15.88 | 19.05 | 26.98 | 0.6 | 6160 | 1448 | 130 |
| SSW4-2RS | 15 | 59.94 | 19.05 | 25.4 | 34.93 | 1 | 9990 | 2310 | 280 |
| SSW4L-2RS | 22 | 75.39 | 25.4 | 31.75 | 44.45 | 1.1 | 1480 | 660 | 580 |
1. Bore ID tolerance is +0-0.008, except W4L. W4L Bore ID tolerance is +0-0.01.
2. Width tolerance is +0-0.12.
3. Clean Room Compatible – All stainless steel components can be internally lubricated with Krytox GPL 227.
4. High Temperature Compatible – Heat stabilized components allow for operating temperatures to 260°C.
RFQ
Are Stainless steel V groove guide wheels available with FDA approved grease?
Yes.we can fill the wheels with customer-specified lubricants.
( If no special requirement, we fill the wheels with Shell Alvania S2. )
What is the temperature range of the standard carbon wheels?
The temperature range of standard carbon steel wheels is limited by the service temperature range of the elastomeric seal and grease. For standard grease, the service temperature range would be from -35℃ to +100℃.
What's the material of cage?
The cage is made from nylon ( glass fibre reinforced PA66)
What's tolerence of the V guide wheels?
Bore diameter +0/-0.008mm, outer diameter ±0.013mm, width +0/-0.008mm.
Are stainless steel V-rails and stainless steel wheel bushing is avaiable?
The concentric or eccentric bushing and V-rails is not available now.
| C&H No. | Dimensions (mm) | Load Ratings(N) | Mass | ||||||
| d | D | B | A1 | A2 | rs | Radial | Axial | ≈(g) | |
| SSW0-2RS | 4.763 | 19.56 | 7.87 | 7.93 | 11.86 | 0.3 | 1260 | 297 | 11 |
| SSW1-2RS | 4.763 | 19.56 | 7.87 | 7.93 | 11.86 | 0.3 | 1260 | 297 | 11 |
| SSW2-2RS | 9.525 | 30.73 | 11.1 | 12.7 | 18.24 | 0.3 | 2730 | 632 | 38 |
| SSW3-2RS | 12 | 45.72 | 15.88 | 19.05 | 26.98 | 0.6 | 6160 | 1448 | 130 |
| SSW4-2RS | 15 | 59.94 | 19.05 | 25.4 | 34.93 | 1 | 9990 | 2310 | 280 |
| SSW4L-2RS | 22 | 75.39 | 25.4 | 31.75 | 44.45 | 1.1 | 1480 | 660 | 580 |
V wheels are the main components of the Linear Motion System, they can be widely used in the industrial robot, cutting machine, motion track, production flow and so on.V-wheels can be used with internal or external 90-degree ways, or used with round shafts.Typical application:
|
• Machine tool doors • Vending machines • Woodworking machinery • Carpet and textile machinery • Laboratory automation • Paper converting equipment • Packaging machinery |
 |
| C&H | BWC | NIKO | SCHATZ | PBC |
| SSW0-2RS | W0SSX | |||
| SSW1-2RS | W1SSX | W1LLSS | VWSS1 | |
| SSW2-2RS | W2SSX | W2LLSS | VWSS2 | |
| SSW3-2RS | W3SSX | W3LLSS | VWSS3 | |
| SSW4-2RS | W4SSX | W4LLSS | VWSS4 | |
| SSW4L-2RS | W4SSXXL |
