Radial Spherical Plain Bearings requiring maintenance
  • GEF...ES,GE...XS/K, GEK...XS
  • GEF...ES,GE...XS/K, GEK...XS
  • GEF...ES,GE...XS/K, GEK...XS
  • GEF...ES,GE...XS/K, GEK...XS
GEF...ES,GE...XS/K, GEK...XS

GEF..ES is with same character with GE series. The inner race and outer race is wider than GE series. The most widely used series. Used for heavy loads since the spherical contact area has a large width. The outer ring is split at two points of GE...XS/K and GEK,enabling the inner ring to be accommodated.

PDF DOWNLOAD
  • Description
  • Specification
  • Application
  • Cross No.
Radial Spherical Plain Bearings - GEF...ES ( SB...A )

Similar with GE...ES series,outer and inner ring wider than GE...ES series

These bearings have an outer ring fractured only at one position, and therefore, the outer and inner rings will not separate. Handling before mounting and mounting
to the housing are simple. The boundary dimensions are the same as those of the GE...XS/K type.Therefore, GE...XS/K and GEF...ES types are dimensionally interchangeable,but the radial internal clearances of the GEF...ES  type are smaller than those of the GE...XS/K type.

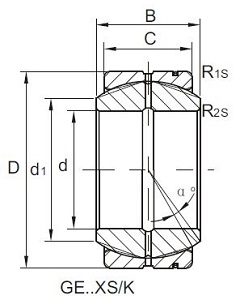

Radial Spherical Plain Bearings - GE...XS/K ( SB...)

dimension is same with GEF...ES series

These bushings have an outer ring split into halves.The split outer ring and the inner ring are held together by a snap ring placed in the groove around the outer periphery of the outer ring.

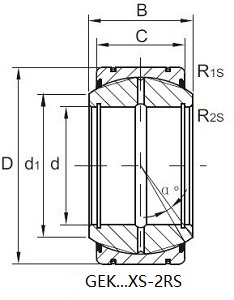

Radial Spherical Plain Bearings - GEK...XS-2RS

These bushings have an outer ring split into halves.The split outer ring and the inner ring are held together by a snap ring placed in the groove around the outer periphery of the outer ring.
Outer ring with two lip seals




Part Number
d
 D B C dK Weight

Inside
 Outside Inner Ring Outer Ring Spherical
  Diameter Diameter Width Width Diameter kg

GEF12ES 12 22 11 9 18 0.019
GEF15ES 15 26 13 11 22 0.031
GEF20ES 20 32 16 14 28 0.054
GEF22ES 22 37 19 16 32 0.088
GEF25ES 25 42 21 18 36 0.128
GEF30ES 30 50 27 23 45 0.232
GEF35ES 35 55 30 26 50 0.291
GEF40ES 40 62 33 28 55 0.392
GEF45ES 45 72 36 31 62 0.609
GEF50ES 50 80 42 36 72 0.885
GEF55ES 55 90 47 40 80 1.29
GEF60ES 60 100 53 45 90 1.84
GEF65ES 65 105 55 47 94 2.03
GEF70ES 70 110 58 50 100 2.28
GEF75ES 75 120 64 55 110 3.08
GEF80ES 80 130 70 60 120 4.04
GEF85ES 85 135 74 63 125 4.44
GEF90ES 90 140 76 65 130 4.79
GEF95ES 95 150 82 70 140 6.07
GEF100ES 100 160 88 75 150 7.56
GEF110ES 110 170 93 80 160 8.63
GEF115ES 115 180 98 85 165 10.4
GEF120ES 120 190 105 90 175 12.5
GEF130ES 130 200 110 95 185 14
GEF150ES 150 220 120 105 205 17.2
GE12XS/K 12 22 11 9 18 0.019
GE15XS/K 15 26 13 11 22 0.031
GE20XS/K 20 32 16 14 28 0.054
GE22XS/K 22 37 19 16 32 0.088
GE25XS/K 25 42 21 18 36 0.128
GE30XS/K 30 50 27 23 45 0.232
GE35XS/K 35 55 30 26 50 0.291
GE40XS/K 40 62 33 28 55 0.392
GE45XS/K 45 72 36 31 62 0.609
GE50XS/K 50 80 42 36 72 0.885
GE55XS/K 55 90 47 40 80 1.29
GE60XS/K 60 100 53 45 90 1.84
GE65XS/K 65 105 55 47 94 2.03
GE70XS/K 70 110 58 50 100 2.28
GE75XS/K 75 120 64 55 110 3.08
GE80XS/K 80 130 70 60 120 4.04
GE85XS/K 85 135 74 63 125 4.44
GE90XS/K 90 140 76 65 130 4.79
GE95XS/K 95 150 82 70 140 6.07
GE100XS/K 100 160 88 75 150 7.56
GE110XS/K 110 170 93 80 160 8.63
GE115XS/K 115 180 98 85 165 10.4
GE120XS/K 120 190 105 90 175 12.5
GE130XS/K 130 200 110 95 185 14
GE150XS/K 150 220 120 105 205 17.2
GEK25XS-2RS 25 68 40 28 30 0.516
GEK30XS-2RS 30 70 47 32 37.3 0.875
GEK35XS-2RS 35 80 54 38 44.5 1.23
GEK40XS-2RS 40 90 64 44 48 1.83
GEK45XS-2RS 45 100 72 52 54 2.56
GEK50XS-2RS 50 110 80 58 60 3.43
GEK55XS-2RS 55 125 90 64 63.2 5.02
GEK60XS-2RS 60 135 98 72 69.3 6.43

The most widely used series. Used for heavy loads since the spherical contact area has a large width. The outer ring is split at two points of GE...XS/K and GEK, enabling the inner ring to be accommodated.
Interchange


C&H IKO NTN
GEF12ES SB 12A
GEF15ES SB 15A
GEF20ES SB 20A
GEF22ES SB 22A
GEF25ES SB 25A
GEF30ES SB 30A
GEF35ES SB 35A
GEF40ES SB 40A
GEF45ES SB 45A
GEF50ES SB 50A
GEF55ES SB 55A
GEF60ESS SB 60A
GEF65ES SB 65A
GEF70ES SB 70A
GEF75ES SB 75A
GEF80ES SB 80A
GEF85ES SB 85A
GEF90ES SB 90A
GEF95ES SB 95A
GEF100ES SB 100A
GEF110ES SB 110A
GEF115ES SB 115A
GEF120ES SB 120A
GEF130ES SB 130A
GEF150ES SB 150A
GE12XS/K SB122211 SB12
GE15XS/K SB152613 SB15
GE20XS/K SB203216 SB20
GE22XS/K SB223719 SB22
GE25XS/K SB254221 SB25
GE30XS/K SB305027 SB30
GE35XS/K SB355530 SB35
GE40XS/K SB406233 SB40
GE45XS/K SB457236 SB45
GE50XS/K SB508042 SB50
GE55XS/K SB559047 SB55
GE60XS/K SB6010053 SB60
GE65XS/K SB6510555 SB65
GE70XS/K SB7011058 SB70
GE75XS/K SB7512064 SB75
GE80XS/K SB8013070 SB80
GE85XS/K SB8513574 SB85
GE90XS/K SB9014076 SB90
GE95XS/K SB9515082 SB95
GE100XS/K SB10016088 SB100
GE110XS/K SB11017093 SB110
GE115XS/K SB11518098 SB115
GE120XS/K SB120190105 SB120
GE130XS/K SB130200110 SB130
GE150XS/K SB150220120 SB150
