NAST...ZZ

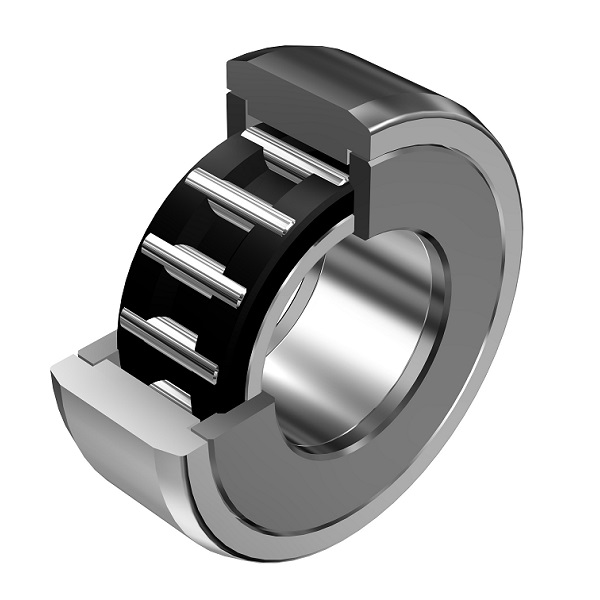

NAST-ZZ support roller ( Yoke track roller,separable roller follower ) has a pair of side plates formed on both sides of the inner ring. NAST-ZZUU with seals.Crowned or cylindrical outer ring.Carbon chrome steel or stainless steel.

PDF DOWNLOAD
  • Description
  • Specification
  • Application
  • Cross No.
Designations
NAST...ZZR               - crowned outer ring, two side plate
NAST...ZZUUR         - crowned outer ring, two side plate + two seals
NAST...ZZ                  - cylindrical outer ring, two side plate
NAST...ZZUU            - cylindrical outer ring, two side plate
NAST...MZZUUR     - crowned outer ring, two side plate + two seals; stainless steel

Material
1.GCr15 ( 100Cr6, 52100 )
2. Stainless steel AISI440C

Separable roller follower type and interchange
Brand
Crowned outer ring
without seals
Crowned outer ring
with seals
Cylindrical outer ring
without seals
Cylindrical outer ring
with seals
C&H NAST...ZZR NAST...ZZUUR NAST...ZZ NAST...ZZUU
IKO NAST...ZZR NAST...ZZUUR NAST...ZZ NAST...ZZUU
THK NAST...ZZR NAST...ZZUUR NAST...ZZ NAST...ZZUU
KOYO STO...ZZ.DZ   STO...ZZ


Designation
Dimensions(mm)　　
Basic load rating(N)　
Track load capacity(N)　
Limiting
Mass
　         dynamic static Spehrical
outer ring		 Cylindrical
outer ring		 speed 　
  d  D B C Cr Cor rpm g
NAST6ZZ 6 19 14 13.8 4120 4550 3530 1370 20000 25
NAST8ZZ 8 24 14 13.8 5680 5890 4020 1860 17000 39
NAST10ZZ 10 30 12 11.8 9700 9670 5590 2450 15000 65
NAST12ZZ 12 32 12 11.8 10400 10900 5980 2740 13000 75
NAST15ZZ 15 35 12 11.8 12300 14300 6570 3140 10000 83
NAST17ZZ 17 40 16 15.8 17400 20900 10900 3720 9500 135
NAST20ZZ 20 47 16 15.8 19200 24500 12700 4610 8500 195
NAST25ZZ 25 52 16 15.8 20700 28400 14100 5290 7000 225
NAST30ZZ 30 62 20 19.8 30300 45400 22100 6660 5500 400
NAST35ZZ 35 72 20 19.8 32200 50600 25700 8130 5000 550
NAST40ZZ 40 80 20 19.8 35700 61100 26900 9310 4000 710
NAST45ZZ 45 85 20 19.8 37100 66400 28500 10100 4000 760
NAST50ZZ 50 90 20 19.8 38700 78100 30200 11000 3500 830
Note:
1.The rotational speed limit value in the table applies to models with grease lubrication. With models using oil lubrication, up to 130% of this value is permitted.
2.The sealed type is provided with prepacked grease. The shield type is not provided with prepacked grease. Perform proper lubrication for use.
3.We also supply stainless steel, the material is available with AISI440C or AISI420C ( DIN 1.4306, 9Cr18Mo)
Support rollers(Yoke type track rollers) have an internal design based on needle or cylindrical roller bearings. They have a thick-walled outer ring, which enables them to accommodate high radial loads, while reducing distortion and bending stresses.
The outer ring running surface is crowned as standard. However, support rollers with a cylindrical (flat) running surface are also available. These pre-greased, ready-to-mount units are suitable for all types of cam drives, tracks and conveyor systems.

Application of C&H cam followers:

  1. Escalator;
  2. Moving sidewalk;
  3. Elevator;
  4. Conveyor system;
  5. Lifting machinery;
  6. Automotive line machinery;
  7. Material handling equipments;
  8. Linear motion guidance equipments;
  9. Cam drives;
  10. Screw drives;

Advantages of C&H Cam followers:

  1. Optimized structure and reliable quality;
  2. Modifying the contacting surface logarithmically to reduce the contact stress;
  3. Full ranges of precision standards for different working conditions;
  4. saving the mounting and maintaining costs with ready-to-fit units;
  5. prolonging the working lifespan by filling grease for life;
Crowned outer ring,without seals

Crowned outer ring,with seals
C&H IKO,THK KOYO C&H IKO,THK
NAST6ZZR NAST6ZZR STO6ZZ NAST6ZZUUR NAST6ZZUUR
NAST8ZZR NAST8ZZR STO8ZZ NAST8ZZUUR NAST8ZZUUR
NAST10ZZR NAST10ZZR STO10ZZ NAST10ZZUUR NAST10ZZUUR
NAST12ZZR NAST12ZZR STO12ZZ NAST12ZZUUR NAST12ZZUUR
NAST15ZZR NAST15ZZR STO15ZZ NAST15ZZUUR NAST15ZZUUR
NAST17ZZR NAST17ZZR STO17ZZ NAST17ZZUUR NAST17ZZUUR
NAST20ZZR NAST20ZZR STO20ZZ NAST20ZZUUR NAST20ZZUUR
NAST25ZZR NAST25ZZR STO25ZZ NAST25ZZUUR NAST25ZZUUR
NAST30ZZR NAST30ZZR STO30ZZ NAST30ZZUUR NAST30ZZUUR
NAST35ZZR NAST35ZZR STO35ZZ NAST35ZZUUR NAST35ZZUUR
NAST40ZZR NAST40ZZR STO40ZZ NAST40ZZUUR NAST40ZZUUR
NAST45ZZR NAST45ZZR STO45ZZ NAST45ZZUUR NAST45ZZUUR
NAST50ZZR NAST50ZZR STO50ZZ NAST50ZZUUR NAST50ZZUUR
Cylindrical outer ring,without seals
Cylindrical outer ring,with seals
C&H IKO,THK KOYO C&H IKO,THK
NAST6ZZ NAST6ZZ STO6ZZ.DZ NAST6ZZUU NAST6ZZUU
NAST8ZZ NAST8ZZ STO8ZZ.DZ NAST8ZZUU NAST8ZZUU
NAST10ZZ NAST10ZZ STO10ZZ.DZ NAST10ZZUU NAST10ZZUU
NAST12ZZ NAST12ZZ STO12ZZ.DZ NAST12ZZUU NAST12ZZUU
NAST15ZZ NAST15ZZ STO15ZZ.DZ NAST15ZZUU NAST15ZZUU
NAST17ZZ NAST17ZZ STO17ZZ.DZ NAST17ZZUU NAST17ZZUU
NAST20ZZ NAST20ZZ STO20ZZ.DZ NAST20ZZUU NAST20ZZUU
NAST25ZZ NAST25ZZ STO25ZZ.DZ NAST25ZZUU NAST25ZZUU
NAST30ZZ NAST30ZZ STO30ZZ.DZ NAST30ZZUU NAST30ZZUU
NAST35ZZ NAST35ZZ STO35ZZ.DZ NAST35ZZUU NAST35ZZUU
NAST40ZZ NAST40ZZ STO40ZZ.DZ NAST40ZZUU NAST40ZZUU
NAST45ZZ NAST45ZZ STO45ZZ.DZ NAST45ZZUU NAST45ZZUU
NAST50ZZ NAST50ZZ STO50ZZ.DZ NAST50ZZUU NAST50ZZUU
