RNA22, NA22

NA22...2RS support roller(Yoke type track roller,roller follower) without a flange ring,lip seals on both sides,separable.With or without inner ring.Crowned or cylindrical outer ring.Made of carbon chrome steel or stainless steel.

PDF DOWNLOAD
  • Description
  • Specification
  • Application
  • Cross No.
Desgination

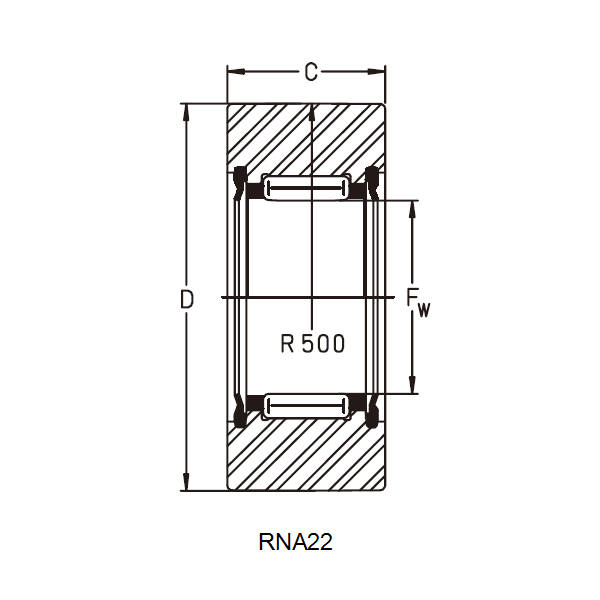

RNA...2RS     - outer ring wihout rib, two lip seals, wihtout inner ring, crowned outer ring
RNA...2RSX  - outer ring without rib, two lip seals,without inner ring, cylindrical outer ring

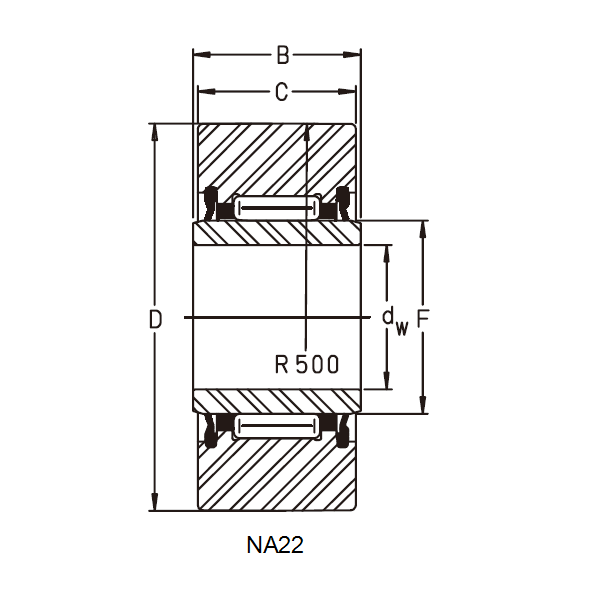

NA...2RS        - outer ring wihout rib, two lip seals, wih inner ring, crowned outer ring
NA...2RSX      - outer ring without rib, two lip seals,with inner ring, cylindrical outer ring

Material
1. GCr15 ( 100Cr6, 52100 )
2. stainless steel ( prefix "SS" )

Inerchange
C&H
INA,SKF,KOYO
C&H
KOYO
NA-2RS NA-2RS NA-2RS.X NA-2RS.DZ


OD
Without IR
Mass
With IR
Mass
d
D
B
C
Fw
E
mm   g   g mm
19 RNA 22/6.2RS 18 NA 22/6.2RS 22 6 19 12 11.8 10 16
RNA 22/6.2RS X 18 NA 22/6.2RS X 22 6 19 12 11.8 10 16
24 RNA 22/8.2RS 29 NA 22/8.2RS 34 8 24 12 11.8 12 18
RNA 22/8.2RS X 29 NA 22/8.2RS X 34 8 24 12 11.8 12 18
30 RNA 2200.2RS 52 NA 2200.2RS 60 10 30 14 13.8 14 20
RNA 2200.2RS X 52 NA 2200.2RS X 60 10 30 14 13.8 14 20
32 RNA 2201.2RS 57 NA 2201.2RS 67 12 32 14 13.8 16 22
RNA 2201.2RS X 57 NA 2201.2RS X 67 12 32 14 13.8 16 22
35 RNA 2202.2RS 60 NA 2202.2RS 75 15 35 14 13.8 20 26
RNA 2202.2RS X 60 NA 2202.2RS X 75 15 35 14 13.8 20 26
40 RNA 2203.2RS 94 NA 2203.2RS 112 17 40 16 15.8 22 28
RNA 2203.2RS X 94 NA 2203.2RS X 112 17 40 16 15.8 22 28
47 RNA 2204.2 RS 152 NA 2204.2RS 177 20 47 18 17.8 25 33
RNA 2204.2RS X 152 NA 2204.2RS X 177 20 47 18 17.8 25 33
52 RNA 2205.2RS 179 NA 2205.2RS 209 25 52 18 17.8 30 38
RNA 2205.2RS X 179 NA 2205.2RS X 209 25 52 18 17.8 30 38
62 RNA 2206.2RS 284 NA 2206.2RS 324 30 62 20 19.8 35 43
RNA 2206.2RS X 284 NA 2206.2RS X 324 30 62 20 19.8 35 43
72 RNA 2207.2RS 432 NA 2207.2RS 505 35 72 23 22.7 42 50
RNA 2207.2RS X 432 NA 2207.2RS X 505 35 72 23 22.7 42 50
80 RNA 2208.2RS 530 NA 2208.2RS 628 40 80 23 22.7 48 57
RNA 2208.2RS X 530 NA 2208.2RS X 628 40 80 23 22.7 48 57
85 RNA 2209.2RS 545 NA 2209.2RS 655 45 85 23 22.7 52 62
RNA 2209.2RS X 545 NA 2209.2RS X 655 45 85 23 22.7 52 62
90 RNA 2210.2RS 563 NA 2210.2RS 690 50 90 23 22.7 58 68
RNA 2210.2RS X 563 NA 2210.2RS X 690 50 90 23 22.7 58 68

Support rollers(Yoke type track rollers) have an internal design based on needle or cylindrical roller bearings. They have a thick-walled outer ring, which enables them to accommodate high radial loads, while reducing distortion and bending stresses.

The outer ring running surface is crowned as standard. However, support rollers with a cylindrical (flat) running surface are also available.

The support roller (roller follower) is used in a wide range of applications such as cam mechanisms of automatic machines, dedicated machines as well as carrier systems, conveyors, bookbinding machines, tool changers of machining centers, pallet changers, automatic coating machines, and sliding forks of automatic warehouses.

The cam follower is  pre-greased, ready-to-mount units are suitable for all types of cam drives, tracks and conveyor systems.

Application of C&H cam followers:

  1. Escalator;
  2. Moving sidewalk;
  3. Elevator;
  4. Conveyor system;
  5. Lifting machinery;
  6. Automotive line machinery;
  7. Material handling equipments;
  8. Linear motion guidance equipments;
  9. Cam drives;
  10. Screw drives;

Advantages of C&H Cam followers:

  1. Optimized structure and reliable quality;
  2. Modifying the contacting surface logarithmically to reduce the contact stress;
  3. Full ranges of precision standards for different working conditions;
  4. saving the mounting and maintaining costs with ready-to-fit units;
  5. prolonging the working lifespan by filling grease for life;
C&H
INA,SKF,KOYO
C&H
KOYO
NA22/6-2RS NA22/6.2RS NA22/6-2RS.X NA22/6.2RS.DZ
NA22/8-2RS NA22/8.2RS NA22/8-2RS.X NA22/8.2RS.DZ
NA2200-2RS NA2200.2RS NA2200-2RS.X NA2200.2RS.DZ
NA2201-2RS NA2201.2RS NA2201-2RS.X NA2201.2RS.DZ
NA2202-2RS NA2202.2RS NA2202-2RS.X NA2202.2RS.DZ
NA2203-2RS NA2203.2RS NA2203-2RS.X NA2203.2RS.DZ
NA2204-2RS NA2204.2RS NA2204-2RS.X NA2204.2RS.DZ
NA2205-2RS NA2205.2RS NA2205-2RS.X NA2205.2RS.DZ
NA2206-2RS NA2206.2RS NA2206-2RS.X NA2206.2RS.DZ
NA2207-2RS NA2207.2RS NA2207-2RS.X NA2207.2RS.DZ
NA2208-2RS NA2208.2RS NA2208-2RS.X NA2208.2RS.DZ
NA2209-2RS NA2209.2RS NA2209-2RS.X NA2209.2RS.DZ
NA2210-2RS NA2210.2RS NA2210-2RS.X NA2210.2RS.DZ
RNA22/6-2RS RNA22/6.2RS RNA22/6-2RS.X RNA22/6.2RS.DZ
RNA22/8-2RS RNA22/8.2RS RNA22/8-2RS.X RNA22/8.2RS.DZ
RNA2200-2RS RNA2200.2RS RNA2200-2RS.X RNA2200.2RS.DZ
RNA2201-2RS RNA2201.2RS RNA2201-2RS.X RNA2201.2RS.DZ
RNA2202-2RS RNA2202.2RS RNA2202-2RS.X RNA2202.2RS.DZ
RNA2203-2RS RNA2203.2RS RNA2203-2RS.X RNA2203.2RS.DZ
RNA2204-2RS RNA2204.2RS RNA2204-2RS.X RNA2204.2RS.DZ
RNA2205-2RS RNA2205.2RS RNA2205-2RS.X RNA2205.2RS.DZ
RNA2206-2RS RNA2206.2RS RNA2206-2RS.X RNA2206.2RS.DZ
RNA2207-2RS RNA2207.2RS RNA2207-2RS.X RNA2207.2RS.DZ
RNA2208-2RS RNA2208.2RS RNA2208-2RS.X RNA2208.2RS.DZ
RNA2209-2RS RNA2209.2RS RNA2209-2RS.X RNA2209.2RS.DZ
RNA2210-2RS RNA2210.2RS RNA2210-2RS.X RNA2210.2RS.DZ
