Radial Spherical Plain Bearings
  • GE...LO
  • GE...LO
  • GE...LO
  • GE...LO

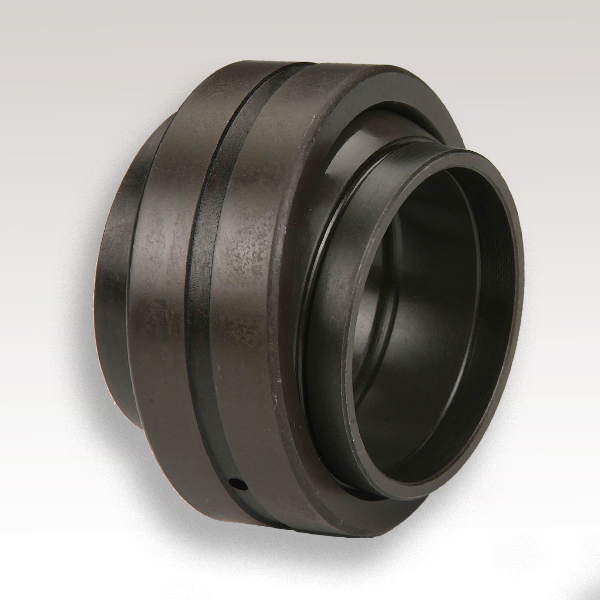

GE...LO

PDF DOWNLOAD
  • Description
  • Specification
  • Application
  • Cross No.

Maintenance Required

  • Sliding contact surfaces: Steel/Steel.

  • Material:

    • Outer Ring -SAE52100, hardened and phosphorized

    • Inner Ring -SAE52100, hardened and phosphorized

  • Characteristics:

    • With lubricating groove and holes

    • Outer ring with a single axial split

    • Sliding contact surfaces with MoS2 coating

  • Properties: Good wearability, corrosion resistance, self-alignment.

Bearing Code Dimensions(mm) Load ratings (Kn) Mass
  d D B C dk r r1s a dyn stat kg
                ≈ C C0
GE12LO 12 22 12 7 18 0.3 0.3 4 10 53 0.022
GE15LO 15 26 15 9 22 0.3 0.3 5 16 84 0.031
GE16LO 16 28 16 9 23 0.3 0.3 4 17 85 0.035
GE17LO 17 30 17 10 25 0.3 0.3 7 21 106 0.044
GE20LO 20 35 20 12 29 0.3 0.3 4 30 146 0.071
GE25LO 25 42 25 16 35.5 0.6 0.6 4 48 240 0.131
GE30LO 30 47 30 18 40.7 0.6 0.6 4 62 310 0.168
GE32LO 32 52 32 18 43 0.6 1 4 65 328 0.182
GE35LO 35 55 35 20 47 0.6 1 4 79 399 0.253
GE40LO 40 62 40 22 53 0.6 1 4 99 495 0.338
GE45LO 45 68 45 25 60 0.6 1 4 127 637 0.481
GE50LO 50 75 50 28 66 0.6 1 4 156 780 0.558
GE60LO 60 90 60 36 80 1 1 4 245 1220 1.15
GE63LO 63 95 63 36 83 1 1 4 253 1260 1.25
GE70LO 70 105 70 40 92 1 1 4 313 1560 1.71
GE80LO 80 120 80 45 105 1 1 4 400 2000 2.39
GE90LO 90 130 90 50 115 1 1 4 488 2440 3.21
GE100LO 100 150 100 55 130 1 1 4 607 3030 4.79
GE110LO 110 160 110 55 140 1 1 4 654 3270 5.78
GE125LO 125 180 125 70 160 1 1 4 950 4750 8.49
GE160LO 160 230 160 80 200 1 1 4 1360 6800 16.5
Bearing Code Dimensions(mm) Load ratings (Kn) Mass
  d D B C dk r r1s a dyn stat kg
                ≈ C C0
GE12LO 12 22 12 7 18 0.3 0.3 4 10 53 0.022
GE15LO 15 26 15 9 22 0.3 0.3 5 16 84 0.031
GE16LO 16 28 16 9 23 0.3 0.3 4 17 85 0.035
GE17LO 17 30 17 10 25 0.3 0.3 7 21 106 0.044
GE20LO 20 35 20 12 29 0.3 0.3 4 30 146 0.071
GE25LO 25 42 25 16 35.5 0.6 0.6 4 48 240 0.131
GE30LO 30 47 30 18 40.7 0.6 0.6 4 62 310 0.168
GE32LO 32 52 32 18 43 0.6 1 4 65 328 0.182
GE35LO 35 55 35 20 47 0.6 1 4 79 399 0.253
GE40LO 40 62 40 22 53 0.6 1 4 99 495 0.338
GE45LO 45 68 45 25 60 0.6 1 4 127 637 0.481
GE50LO 50 75 50 28 66 0.6 1 4 156 780 0.558
GE60LO 60 90 60 36 80 1 1 4 245 1220 1.15
GE63LO 63 95 63 36 83 1 1 4 253 1260 1.25
GE70LO 70 105 70 40 92 1 1 4 313 1560 1.71
GE80LO 80 120 80 45 105 1 1 4 400 2000 2.39
GE90LO 90 130 90 50 115 1 1 4 488 2440 3.21
GE100LO 100 150 100 55 130 1 1 4 607 3030 4.79
GE110LO 110 160 110 55 140 1 1 4 654 3270 5.78
GE125LO 125 180 125 70 160 1 1 4 950 4750 8.49
GE160LO 160 230 160 80 200 1 1 4 1360 6800 16.5
Long service life, high reliability and minimal maintenance are some of the features of C&H spherical plain bearings and rod ends. C&H’s wide assortment of spherical plain bearings and rod ends is versatile enough to be used in avariety of applications that encompass almost all sectors of industry, including:
• agriculture
• construction
• forklift trucks
• material handling
• metals
• mining
• railways
• trucks
• wind energy
