Maintenance Required
-
Sliding contact surfaces: Steel/Steel.
-
Material:
-
Outer Ring -SAE52100, hardened and phosphorized
-
Inner Ring -SAE52100, hardened and phosphorized
-
-
Characteristics:
-
With lubricating groove and holes
-
Outer ring with a single axial split
-
Sliding contact surfaces with MoS2 coating
-
Double seals
-
-
Properties: Good wearability, corrosion resistance, self-alignment, dust-proof.

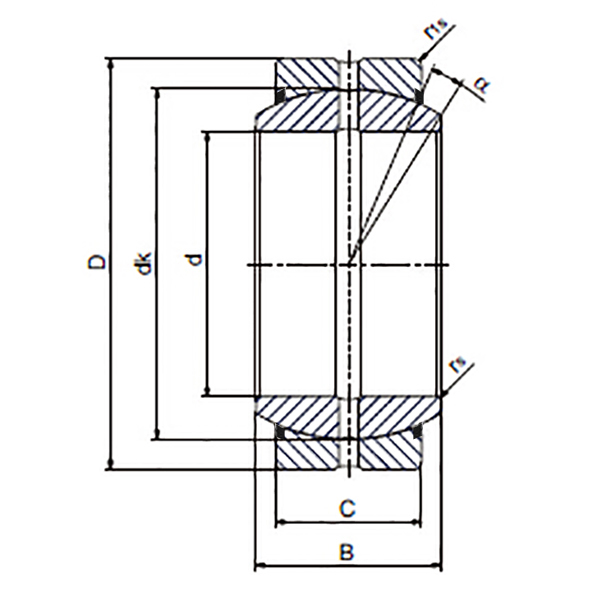

| Bearing Code | Dimensions(mm) | Load ratings (Kn) | Mass | ||||||||
| d | D | B | C | dk | r | r1s | a | dyn | stat | kg | |
| ≈ | C | C0 | |||||||||
| GE15ES 2RS | 15 | 26 | 12 | 9 | 22 | 0.3 | 0.3 | 8 | 16 | 84 | 0.027 |
| GE17ES 2RS | 17 | 30 | 14 | 10 | 25 | 0.3 | 0.3 | 10 | 21 | 106 | 0.041 |
| GE20ES 2RS | 20 | 35 | 16 | 12 | 29 | 0.3 | 0.3 | 9 | 30 | 146 | 0.066 |
| GE25ES 2RS | 25 | 42 | 20 | 16 | 35.5 | 0.6 | 0.6 | 7 | 48 | 240 | 0.119 |
| GE30ES 2RS | 30 | 47 | 22 | 18 | 40.7 | 0.6 | 0.6 | 6 | 62 | 310 | 0.153 |
| GE35ES 2RS | 35 | 55 | 25 | 20 | 47 | 0.6 | 1 | 6 | 79 | 399 | 0.233 |
| GE40ES 2RS | 40 | 62 | 28 | 22 | 53 | 0.6 | 1 | 7 | 99 | 495 | 0.306 |
| GE45ES 2RS | 45 | 68 | 32 | 25 | 60 | 0.6 | 1 | 7 | 127 | 637 | 0.427 |
| GE50ES 2RS | 50 | 75 | 35 | 28 | 66 | 0.6 | 1 | 6 | 156 | 780 | 0.546 |
| GE60ES 2RS | 60 | 90 | 44 | 36 | 80 | 1 | 1 | 6 | 245 | 1220 | 1.04 |
| GE70ES 2RS | 70 | 105 | 49 | 40 | 92 | 1 | 1 | 6 | 313 | 1560 | 1.55 |
| GE80ES 2RS | 80 | 120 | 55 | 45 | 105 | 1 | 1 | 6 | 400 | 2000 | 2.31 |
| GE90ES 2RS | 90 | 130 | 60 | 50 | 115 | 1 | 1 | 5 | 488 | 2440 | 2.75 |
| GE100ES 2RS | 100 | 150 | 70 | 55 | 130 | 1 | 1 | 7 | 607 | 3030 | 4.45 |
| GE110ES 2RS | 110 | 160 | 70 | 55 | 140 | 1 | 1 | 6 | 654 | 3270 | 4.82 |
| GE120ES 2RS | 120 | 180 | 85 | 70 | 160 | 1 | 1 | 6 | 950 | 4750 | 8.05 |
| GE140ES 2RS | 140 | 210 | 90 | 70 | 180 | 1 | 1 | 7 | 1070 | 5350 | 11.02 |
| GE160ES 2RS | 160 | 230 | 105 | 80 | 200 | 1 | 1 | 8 | 1360 | 6800 | 14.01 |
| GE180ES 2RS | 180 | 260 | 105 | 80 | 225 | 1.1 | 1.1 | 6 | 1530 | 7650 | 18.65 |
| GE200ES 2RS | 200 | 290 | 130 | 100 | 250 | 1.1 | 1.1 | 7 | 2120 | 10600 | 28.03 |
| GE220ES 2RS | 220 | 320 | 135 | 100 | 275 | 1.1 | 1.1 | 8 | 2320 | 11600 | 35.51 |
| Bearing Code | Dimensions(mm) | Load ratings (Kn) | Mass | ||||||||
| d | D | B | C | dk | r | r1s | a | dyn | stat | kg | |
| ≈ | C | C0 | |||||||||
| GE15ES 2RS | 15 | 26 | 12 | 9 | 22 | 0.3 | 0.3 | 8 | 16 | 84 | 0.027 |
| GE17ES 2RS | 17 | 30 | 14 | 10 | 25 | 0.3 | 0.3 | 10 | 21 | 106 | 0.041 |
| GE20ES 2RS | 20 | 35 | 16 | 12 | 29 | 0.3 | 0.3 | 9 | 30 | 146 | 0.066 |
| GE25ES 2RS | 25 | 42 | 20 | 16 | 35.5 | 0.6 | 0.6 | 7 | 48 | 240 | 0.119 |
| GE30ES 2RS | 30 | 47 | 22 | 18 | 40.7 | 0.6 | 0.6 | 6 | 62 | 310 | 0.153 |
| GE35ES 2RS | 35 | 55 | 25 | 20 | 47 | 0.6 | 1 | 6 | 79 | 399 | 0.233 |
| GE40ES 2RS | 40 | 62 | 28 | 22 | 53 | 0.6 | 1 | 7 | 99 | 495 | 0.306 |
| GE45ES 2RS | 45 | 68 | 32 | 25 | 60 | 0.6 | 1 | 7 | 127 | 637 | 0.427 |
| GE50ES 2RS | 50 | 75 | 35 | 28 | 66 | 0.6 | 1 | 6 | 156 | 780 | 0.546 |
| GE60ES 2RS | 60 | 90 | 44 | 36 | 80 | 1 | 1 | 6 | 245 | 1220 | 1.04 |
| GE70ES 2RS | 70 | 105 | 49 | 40 | 92 | 1 | 1 | 6 | 313 | 1560 | 1.55 |
| GE80ES 2RS | 80 | 120 | 55 | 45 | 105 | 1 | 1 | 6 | 400 | 2000 | 2.31 |
| GE90ES 2RS | 90 | 130 | 60 | 50 | 115 | 1 | 1 | 5 | 488 | 2440 | 2.75 |
| GE100ES 2RS | 100 | 150 | 70 | 55 | 130 | 1 | 1 | 7 | 607 | 3030 | 4.45 |
| GE110ES 2RS | 110 | 160 | 70 | 55 | 140 | 1 | 1 | 6 | 654 | 3270 | 4.82 |
| GE120ES 2RS | 120 | 180 | 85 | 70 | 160 | 1 | 1 | 6 | 950 | 4750 | 8.05 |
| GE140ES 2RS | 140 | 210 | 90 | 70 | 180 | 1 | 1 | 7 | 1070 | 5350 | 11.02 |
| GE160ES 2RS | 160 | 230 | 105 | 80 | 200 | 1 | 1 | 8 | 1360 | 6800 | 14.01 |
| GE180ES 2RS | 180 | 260 | 105 | 80 | 225 | 1.1 | 1.1 | 6 | 1530 | 7650 | 18.65 |
| GE200ES 2RS | 200 | 290 | 130 | 100 | 250 | 1.1 | 1.1 | 7 | 2120 | 10600 | 28.03 |
| GE220ES 2RS | 220 | 320 | 135 | 100 | 275 | 1.1 | 1.1 | 8 | 2320 | 11600 | 35.51 |
Long service life, high reliability and minimal maintenance are some of the features of C&H spherical plain bearings and rod ends. C&H’s wide assortment of spherical plain bearings and rod ends is versatile enough to be used in avariety of applications that encompass almost all sectors of industry, including:
• agriculture
• construction
• forklift trucks
• material handling
• metals
• mining
• railways
• trucks
• wind energy
| SKF | IKO | NATIONAL | ELGES | R.B.C. | TORRINGTON |
| GE15ES-2RS | GE15ES-2RS | GE15ES-2RS | – | – | 15FS26-TT |
| GE17ES-2RS | GE17ES-2RS | GE17ES-2RS | GE17DO-2RS | MB17-SS | 17FS30-TT |
| GE20ES-2RS | GE20ES-2RS | GE20ES-2RS | GE20DO-2RS | MB20-SS | 20FS35-TT |
| GE25ES-2RS | GE25ES-2RS | GE25ES-2RS | GE25DO-2RS | MB25-SS | 25FS42-TT |
| GE30ES-2RS | GE30ES-2RS | GE30ES-2RS | GE30DO-2RS | MB30-SS | 30FS47-TT |
| GE35ES-2RS | GE35ES-2RS | GE35ES-2RS | GE35DO-2RS | MB35-SS | 35FS55-TT |
| GE40ES-2RS | GE40ES-2RS | GE40ES-2RS | GE40DO-2RS | MB40-SS | 40FS62-TT |
| GE45ES-2RS | GE45ES-2RS | GE45ES-2RS | GE45DO-2RS | MB45-SS | 45FS68-TT |
| GE50ES-2RS | GE50ES-2RS | GE50ES-2RS | GE50DO-2RS | MB50-SS | 50FS75-TT |
| GE60ES-2RS | GE60ES-2RS | GE60ES-2RS | GE60DO-2RS | MB60-SS | 60FS90-TT |
| GE70ES-2RS | GE70ES-2RS | GE70ES-2RS | GE70DO-2RS | MB70-SS | 70FS105-SS |
| GE80ES-2RS | GE80ES-2RS | GE80ES-2RS | GE80DO-2RS | MB80-SS | 80FS120-SS |
| GE90ES-2RS | GE90ES-2RS | GE90ES-2RS | GE90DO-2RS | MB90-SS | 90FS130-SS |
| GE100ES-2RS | GE100ES-2RS | GE100ES-2RS | GE100DO-2RS | MB100-SS | 100FS150-SS |
| GE110ES-2RS | GE110ES-2RS | GE110ES-2RS | GE110DO-2RS | MB110-SS | 110FS160-SS |
| GE120ES-2RS | GE120ES-2RS | GE120ES-2RS | GE120DO-2RS | MB120-SS | 120FS180-SS |
| GE140ES-2RS | GE140ES-2RS | GE140ES-2RS | GE140DO-2RS | MB140-SS | 140FS210-SS |
| GE160ES-2RS | GE160ES-2RS | GE160ES-2RS | GE160DO-2RS | MB160-9LSS | 160FS230-SS |
| GE180ES-2RS | GE180ES-2RS | GE180ES-2RS | GE180DO-2RS | MB180-9LSS | 180FS260-SS |
| GE200ES-2RS | GE200ES-2RS | GE200ES-2RS | GE200DO-2RS | MB200-9LSS | 200FS290-SS |
| GE220ES-2RS | GE220ES-2RS | GE220ES-2RS | GE220DO-2RS | MB220-9LSS | 220FS320-SS |
