GE..FW-2RS maintenance free radial spherical plain bearings,steel/PTFE fabric
GE...GW-2RS maintenance free radial spherical plain bearings is with same dimensions of GEG...ES-2RS. The bearings is made by high quality chrome steel,out race is lined with PTFE fabric( Dupont Teflon is available in case of customer requirement).Twp lip seals.
PDF DOWNLOAD- Description
- Specification
- Application
- Cross No.

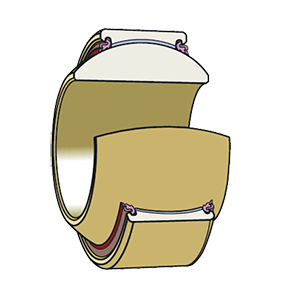

Maintenance Free Radial spherical plain bearings-GE..FW 2RS
|
Sliding contact surface: steel/PTFE fabric
Outer race:GCr15 steel, bonded with PTFE fabric, with two lip seals, phosphate treated, with a single axial fracture |
 |

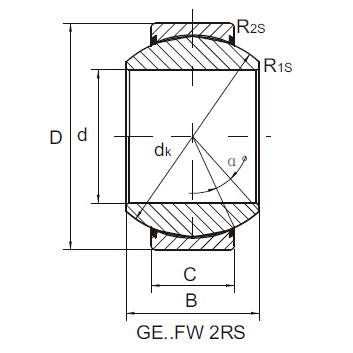

| Part Number | d | D | B | C | dK | Weight |
| Inside | Outside | Inner Ring | Outer Ring | Spherical | ||
| Diameter | Diameter | Width | Width | Diameter | kg | |
| GE 15 FW 2RS | 15 | 30 | 16 | 10 | 25 | 0.046 |
| GE 17 FW 2RS | 17 | 35 | 20 | 12 | 29 | 0.078 |
| GE 20 FW 2RS | 20 | 42 | 25 | 16 | 35.5 | 0.15 |
| GE 25 FW 2RS | 25 | 47 | 28 | 18 | 40.7 | 0.19 |
| GE 30 FW 2RS | 30 | 55 | 32 | 20 | 47 | 0.29 |
| GE 35 FW 2RS | 35 | 62 | 35 | 22 | 53 | 0.39 |
| GE 40 FW 2RS | 40 | 68 | 40 | 25 | 60 | 0.52 |
| GE 45 FW 2RS | 45 | 75 | 43 | 28 | 66 | 0.68 |
| GE 50 FW 2RS | 50 | 90 | 56 | 36 | 80 | 1.40 |
| GE 60 FW 2RS | 60 | 105 | 63 | 40 | 92 | 2 |
| GE 70 FW 2RS | 70 | 120 | 70 | 45 | 105 | 2.90 |
| GE 80 FW 2RS | 80 | 130 | 75 | 50 | 115 | 3.50 |
| GE 90 FW 2RS | 90 | 150 | 85 | 55 | 130 | 5.40 |
| GE 100 FW 2RS | 100 | 160 | 85 | 55 | 140 | 6 |
| GE 110 FW 2RS | 110 | 180 | 100 | 70 | 160 | 9.7 |
| GE 120 FW 2RS | 120 | 210 | 115 | 70 | 180 | 14 |
| GE 140 FW 2RS | 140 | 230 | 130 | 80 | 200 | 19 |
| GE 160 FT 2RS | 160 | 260 | 135 | 80 | 225 | 24.7 |
| GE 180 FT 2RS | 180 | 290 | 155 | 100 | 250 | 35.9 |
| GE 200 FT 2RS | 200 | 320 | 165 | 100 | 275 | 45.3 |
| GE 220 FT 2RS | 220 | 340 | 175 | 100 | 300 | 51.1 |
| GE 240 FT 2RS | 240 | 370 | 190 | 110 | 325 | 65.1 |
| GE 260 FT 2RS | 260 | 400 | 205 | 120 | 350 | 82.4 |
| GE 280 FT 2RS | 280 | 430 | 210 | 120 | 375 | 97.2 |
1. FW - outer ring is fractured on one ponit;
FT - outer ring is axial split and held together with one or two bonds or bolted together.
2. 15≤d≤120, stainless steel bearings is available, DIN1.4034/ AISI420, hardeded and ground.
