GE..FW maintenance free radial spherical plain bearings,steel/PTFE composite
GE...FW maintenance free radial spherical plain bearings is with same dimension of GEG...ES. The bearings is made by high quality chrome steel,out race is lined with PTFE composite material(A special PTFE liner reinforced with copper alloy meshes is used on the sliding surface)
PDF DOWNLOAD- Description
- Specification
- Application
- Cross No.

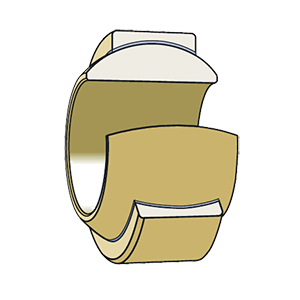

Maintenance free radial spherical plain bearings - GE..FW
|
Sliding contact surface: steel/PTFE sintered bronze Outer race is pressed around inner race. Outer race:carbon steel with liner of PTFE sintered bronze
Ball:GCr15 steel,through-hardened HRC58~64, |
 |

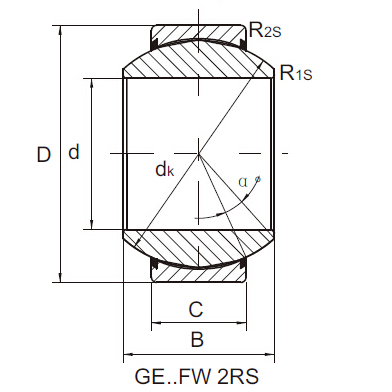

| Part Number | d | D | B | C | dK | Weight |
| Inside | Outside | Inner Ring | Outer Ring | Spherical | ||
| Diameter | Diameter | Width | Width | Diameter | kg | |
| GE 6 FW | 6 | 16 | 9 | 5 | 13 | 0.008 |
| GE 8 FW | 8 | 19 | 11 | 6 | 16 | 0.014 |
| GE 10 FW | 10 | 22 | 12 | 7 | 18 | 0.021 |
| GE 12 FW | 12 | 26 | 15 | 9 | 22 | 0.033 |
| GE 15 FW | 15 | 30 | 16 | 10 | 25 | 0.049 |
| GE 17 FW | 17 | 35 | 20 | 12 | 29 | 0.083 |
| GE 20 FW | 20 | 42 | 25 | 16 | 35.5 | 0.153 |
| GE 25 FW | 25 | 47 | 28 | 18 | 40.7 | 0.203 |
| GE 30 FW | 30 | 55 | 32 | 20 | 47 | 0.304 |
| C&H | SKF | ELGLES |
| GE..FW | GEH..C | GE..FW |
| GE 6 FW | - | GE 6 FW |
| GE 8 FW | - | GE 8 FW |
| GE 10 FW | GEH 10 C | GE 10 FW |
| GE 12 FW | GEH 12 C | GE 12 FW |
| GE 15 FW | GEH 15 C | GE 15 FW |
| GE 17 FW | GEH 17 C | GE 17 FW |
| GE 20 FW | GEH 20 C | GE 20 FW |
| GE 25 FW | GEH 25 C | GE 25 FW |
| GE 30 FW | - | - |
