GE..LO
C&H supply all kinds of premium quality spherical plain bearing which is made by the high quality bearing steel, processed with advanced lathing and grinding machine, heat treated with advanced heat treatment lines.
PDF DOWNLOAD- Description
- Specification
- Application
- Cross No.

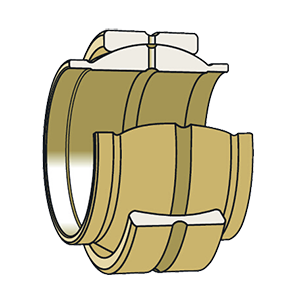

GE...LO Radial spherical plain bearing with a wider ring
|
• ISO 12 240-1, dimension series W • Sliding contact surfaces: Steel/Steel • Rings: GCr15(100Cr6,SAE52100), case hardened, surface phosphated • Outer ring with single axial fracture • With lubrication holes and groove in both rings • Sliding contact surfaces cated with molybdenum disulphide ( MoS2 ) • Bore dimensions to standard sizes dimensions to DIN 24 338 for standard hydraulic cylinders
• The inner ring width equals the bore diameter
• for shaft diameters from 12 mm to 320 mm |
 |
| Part Number | d | D | B | C | dK | Weight |
| Inisde | Outside | Inner Ring | Outer Ring | Spherical | ||
| Diameter | Diameter | Width | Width | Diameter | kg | |
| GE 12 LO | 12 +0.018 | 22 -0.009 | 12 -0.18 | 7 -0.24 | 18 | 0.018 |
| GE 15 LO | 15 +0.018 | 26 -0.009 | 15 -0.18 | 9 -0.24 | 22 | 0.031 |
| GE 16 LO | 16 +0.018 | 28 -0.009 | 16 -0.18 | 9 -0.24 | 23 | 0.035 |
| GE 17 LO | 17 +0.018 | 30 -0.009 | 17 -0.18 | 10 -0.24 | 25 | 0.044 |
| GE 20 LO | 20 +0.021 | 35 -0.011 | 20 -0.21 | 12 -0.24 | 29 | 0.07 |
| GE 25 LO | 25 +0.021 | 42 -0.011 | 25 -0.21 | 16 -0.24 | 35.5 | 0.12 |
| GE 30 LO | 30 +0.021 | 47 -0.011 | 30 -0.21 | 18 -0.24 | 40.7 | 0.168 |
| GE 32 LO | 32 +0.025 | 52 -0.013 | 32 -0.25 | 18 -0.30 | 44 | 0.21 |
| GE 35 LO | 35 +0.025 | 55 -0.013 | 35 -0.25 | 20 -0.30 | 47 | 0.253 |
| GE 40 LO | 40 +0.025 | 62 -0.013 | 40 -0.25 | 22 -0.30 | 53 | 0.33 |
| GE 45 LO | 45 +0.025 | 68 -0.013 | 45 -0.25 | 25 -0.30 | 60 | 0.481 |
| GE 50 LO | 50 +0.025 | 75 -0.013 | 50 -0.25 | 28 -0.30 | 66 | 0.56 |
| GE 60 LO | 60 +0.030 | 90 -0.015 | 60 -0.30 | 36 -0.40 | 80 | 1.15 |
| GE 63 LO | 63 +0.030 | 95 -0.015 | 63 -0.30 | 36 -0.40 | 83 | 1.25 |
| GE 70 LO | 70 +0.030 | 105 -0.015 | 70 -0.30 | 40 -0.40 | 92 | 1.71 |
| GE 80 LO | 80 +0.030 | 120 -0.015 | 80 -0.30 | 45 -0.40 | 105 | 2.39 |
| GE 90 LO | 90 +0.035 | 130 -0.018 | 90 -0.35 | 50 -0.50 | 115 | 3.21 |
| GE 100 LO | 100 +0.035 | 150 -0.018 | 100 -0.35 | 55 -0.50 | 130 | 4.8 |
| GE 110 LO | 110 +0.035 | 160 -0.025 | 110 -0.35 | 55 -0.50 | 140 | 5.78 |
| GE 125 LO | 125 +0.040 | 180 -0.025 | 125 -0.40 | 70 -0.50 | 160 | 8.49 |
| GE 160 LO | 160 +0.040 | 230 -0.030 | 160 -0.40 | 80 -0.60 | 200 | 16.5 |
| GE 200 LO | 200 +0.046 | 290 -0.035 | 200 -0.46 | 100 -0.70 | 250 | 32.1 |
| GE 250 LO | 250 +0.046 | 400 -0.040 | 250 -0.46 | 120 -0.80 | 350 | 99.1 |
| GE 320 LO | 320 +0.057 | 520 -0.050 | 320 -0.57 | 160 -1.00 | 450 | 225 |
1.GE 12 LO - A lubrication groove and hole in ther outering only. Cylindrical througout.
2.Bore diameter equal and over 15mm, can supply two seals. suffix; -2RS;3.Bore tolerance: H7 (arithmetic mean value).
4.Radial clearance is availabe with CN,C3 and C2
Long service life, high reliability and minimal maintenance are some of the features of C&H spherical plain bearings and rod ends. C&H’s wide assortment of spherical plain bearings and rod ends is versatile enough to be used in avariety of applications that encompass almost all sectors of industry, including:
• agriculture
• construction
• forklift trucks
• material handling
• metals
• mining
• railways
• trucks
• wind energy
WARNING!
The manufacturer can not determine all applications of its prodcuts, it is up to the customer to determine a suitable part for their application. For assitance, please contact C&H Engineering Deparment.
| C&H | INA/EAGLES | SKF | RBC | AURORA/LS |
| GE...LO | GE...LO | GEG...ES | MB..-E | GEEW...ES |
| GE 12 LO | GE 12 LO | GEG 12 ESA | – | GEEW 12 ES |
| GE 15 LO | – | – | – | GEEW 15 ES |
| GE 16 LO | GE 16 LO | GEG 16 ES | – | GEEW 16 ES |
| GE 17 LO | – | – | MB17-E | GEEW 17 ES |
| GE 20 LO | GE 20 LO | GEG 20 ES | MB20-E | GEEW 20 ES |
| GE 25 LO | GE 25 LO | GEG 25 ES | MB25-E | GEEW 25 ES |
| GE 30 LO | – | – | MB30-E | GEEW 30 ES |
| GE 32 LO | GE 32 LO | GEG 32 ES | – | GEEW 32 ES |
| GE 35 LO | – | – | MB35-E | GEEW 35 ES |
| GE 40 LO | GE 40 LO | GEG 40 ES | MB40-E | GEEW 40 ES |
| GE 45 LO | – | – | MB45-E | GEEW 45 ES |
| GE 50 LO | GE 50 LO | GEG 50 ES | MB50-E | GEEW 50 ES |
| GE 50LO | – | – | MB60-E | GEEW 60 ES |
| GE 63 LO | GE 63 LO | GEG 63 ES | – | GEEW 63 ES |
| GE 70 LO | GE 70 LO | – | MB70-E | GEEW 70 ES |
| GE 80 LO | GE 80 LO | GEG 80 ES | MB80-E | GEEW 80 ES |
| GE 90 LO | GE 90 LO | – | – | GEEW 90 ES |
| GE 100 LO | GE 100 LO | GEG 100 ES | – | GEEW 100 ES |
| GE 110 LO | GE 110 LO | – | – | GEEW 110 ES |
| GE 125 LO | GE 125 LO | GEG 125 ES | – | GEEW 125 ES |
| GE 160 LO | GE 160 LO | GEG 160 ES | – | GEEW 160 ES |
| GE 200 LO | GE 200 LO | GEG 200 ES | – | GEEW 200 ES |
| GE 250 LO | GE 250 LO | – | – | GEEW 250 ES |
| GE 320 LO | GE 320 LO | – | – | GEEW 320 ES |
This interchange table shows approximate equivalency.It is not intended that all of manufacturers' products are functionally interchangeale in all applications.C&H reserves the right to change specifications and other information included in this catalog without notice.All information,data, and dimensions tables in this catalog have been carefully compiled and thoroughly checked. However, no responsibility for possible errors or omissions can be assumed.
