GE..E, GE..ES, GE..ES-2RS

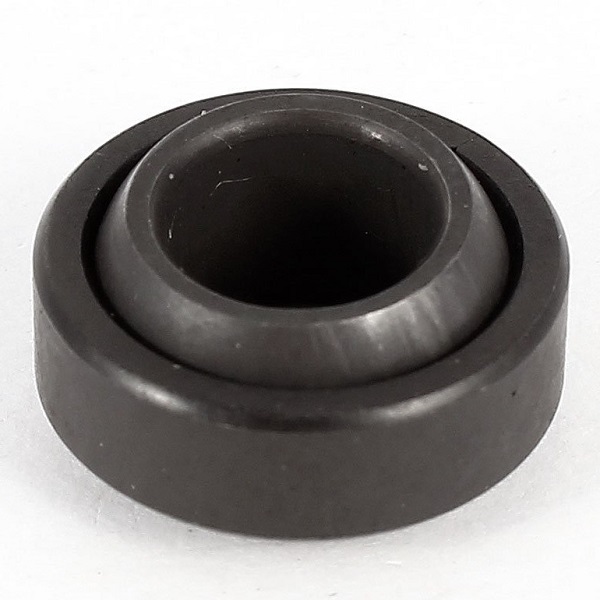

C&H GE series radial spherical plain bearings is with premium quality which is guaranteed by the high quality bearing steel,precision ground,expensive heat-treatment lines and unique special high-temperature phosphate.Also has a very good spherical roundness, make more flexible rotating sphere.
PDF DOWNLOAD- Description
- Specification
- Application
- Cross No.
|
• Sliding contact surfaces: Steel/Steel • Outer ring: GCr15, case hardened HRC 58-64, surface phosphated • Inner ring(ball): GCr15, case hardened HRC 58-64, surface phosphated • Outer ring with single axial split • Without lubrication holes and groove in both rings • Sliding contact surfaces cated with molybdenum disulphide ( MoS2 ) • Properties: good wearability,corrosion resistance,self-alignment |
 |

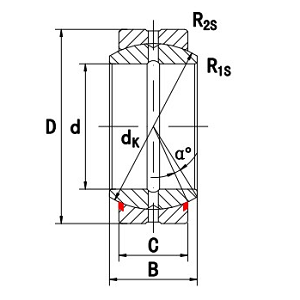

GE...ES ( d=15-300mm, open )
|
• Sliding contact surfaces: Steel/Steel • Outer ring: GCr15, case hardened HRC 58-64, surface phosphated • Inner ring(ball): GCr15, case hardened HRC 58-64, surface phosphated • Outer ring with single axial split • With lubrication holes and groove in both rings • Sliding contact surfaces cated with molybdenum disulphide ( MoS2 ) • Properties: good wearability,corrosion resistance,self-alignment |
 |
GE...ES-2RS ( d=15-300mm, sealed )
|
• Sliding contact surfaces: Steel/Steel • Outer ring: GCr15, case hardened HRC 58-64, surface phosphated • Inner ring(ball): GCr15, case hardened HRC 58-64, surface phosphated • Outer ring with single axial split and two lip seals • With lubrication holes and groove in both rings • Sliding contact surfaces cated with molybdenum disulphide ( MoS2 ) • Properties: good wearability,corrosion resistance,self-alignment,dust-proof |
 |
| Part Number | Part Nmber | d |
D
|
B
|
C
|
dk
|
Weight |
| Inside | Outerside | Inner Ring | Outer Ring | Spherical | |||
| open | with seals | Diameter | Diameter | Width | Width | Diameter | kg |
| GE 4 E | 4 | 12 | 5 | 3 | 8 | 0.003 | |
| GE 5 E | 5 | 14 | 6 | 4 | 10 | 0.004 | |
| GE 6 E | 6 | 14 | 6 | 4 | 10 | 0.004 | |
| GE 8 E | 8 | 16 | 8 | 5 | 13 | 0.007 | |
| GE 10 E | 10 | 19 | 9 | 6 | 16 | 0.011 | |
| GE 12 E | 12 | 22 | 10 | 7 | 18 | 0.016 | |
| GE 15 ES | GE 15 ES 2RS | 15 | 26 | 12 | 9 | 22 | 0.026 |
| GE 16 ES | GE 16 ES 2RS | 16 | 30 | 14 | 10 | 25 | 0.043 |
| GE 17 ES | GE 17 ES 2RS | 17 | 30 | 14 | 10 | 25 | 0.043 |
| GE 20 ES | GE 20 ES 2RS | 20 | 35 | 16 | 12 | 29 | 0.061 |
| GE 25 ES | GE 25 ES 2RS | 25 | 42 | 20 | 16 | 35.5 | 0.11 |
| GE 30 ES | GE 30 ES 2RS | 30 | 47 | 22 | 18 | 40.7 | 0.14 |
| GE 35 ES | GE 35 ES 2RS | 35 | 55 | 25 | 20 | 47 | 0.22 |
| GE 40 ES | GE 40 ES 2RS | 40 | 62 | 28 | 22 | 53 | 0.30 |
| GE 45 ES | GE 45 ES 2RS | 45 | 68 | 32 | 25 | 60 | 0.41 |
| GE 50 ES | GE 50 ES 2RS | 50 | 75 | 35 | 28 | 66 | 0.53 |
| GE 55 ES | GE 55 ES 2RS | 55 | 85 | 40 | 32 | 74 | 0.94 |
| GE 60 ES | GE 60 ES 2RS | 60 | 90 | 44 | 36 | 80 | 1.00 |
| GE 70 ES | GE 70 ES 2RS | 70 | 105 | 49 | 40 | 92 | 1.50 |
| GE 80 ES | GE 80 ES 2RS | 80 | 120 | 55 | 45 | 105 | 2.20 |
| GE 90 ES | GE 90 ES 2RS | 90 | 130 | 60 | 50 | 115 | 2.70 |
| GE 100 ES | GE 100 ES 2RS | 100 | 150 | 70 | 55 | 130 | 4.30 |
| GE 110 ES | GE 110 ES 2RS | 110 | 160 | 70 | 55 | 140 | 4.70 |
| GE 120 ES | GE 120 ES 2RS | 120 | 180 | 85 | 70 | 160 | 8.00 |
| GE 140 ES | GE 140 ES 2RS | 140 | 210 | 90 | 70 | 180 | 11.00 |
| GE 160 ES | GE 160 ES 2RS | 160 | 230 | 105 | 80 | 200 | 14.00 |
| GE 180 ES | GE 180 ES 2RS | 180 | 260 | 105 | 80 | 225 | 18.50 |
| GE 200 ES | GE 200 ES 2RS | 200 | 290 | 130 | 100 | 250 | 28.00 |
| GE 220 ES | GE 220 ES 2RS | 220 | 320 | 135 | 100 | 275 | 35.51 |
| GE 240 ES | GE 240 ES 2RS | 240 | 340 | 140 | 100 | 300 | 39.91 |
| GE 260 ES | GE 260 ES 2RS | 260 | 370 | 150 | 110 | 325 | 51.54 |
| GE 280 ES | GE 280 ES 2RS | 280 | 400 | 155 | 120 | 350 | 65.06 |
| GE 300 ES | GE 300 ES 2RS | 300 | 430 | 165 | 120 | 375 | 78.07 |
Long service life, high reliability and minimal maintenance are some of the features of C&H spherical plain bearings and rod ends. C&H’s wide assortment of spherical plain bearings and rod ends is versatile enough to be used in avariety of applications that encompass almost all sectors of industry, including automobile, agriculture, construction, forklift trucks, material handling, metals, mining, railways, trucks, wind energy
WARNING!
The manufacturer can not determine all applications of its prodcuts, it is up to the customer to determine a suitable part for their application. For assitance, please contact C&H Engineering Deparment.
| STANDARD DUTY RADIAL SPHERICAL PLAIN BEARING METRIC UNSEALED | |||||
| C&H/SKF | R.B.C. | NTN | TORRINGTON | ELGES | IKO |
| GE4E | GE4E | ||||
| GE5E | GE5E | ||||
| GE6E | GE6DO | GE6E | |||
| GE8E | GE8DO | GE8E | |||
| GE10E | GE10DO | GE10E | |||
| GE12E | MB12 | SA1-12 | 12FS22 | GE12DO | GE12E |
| GE15ES | MB15 | SA1-15 | 15FS26 | GE15DO | GE15ES |
| GE17ES | MB17 | SA1-17 | 17FS30 | GE17DO | GE17ES |
| GE20ES | MB20 | SA1-20 | 20FS35 | GE20DO | GE20ES |
| GE25ES | MB25 | SA1-25 | 25FS42 | GE25DO | GE25ES |
| GE30ES | MB30 | SA1-30 | 30FS47 | GE30DO | GE30ES |
| GE35ES | MB35 | SA1-35 | 35FS55 | GE35DO | GE35ES |
| GE40ES | MB40 | SA1-40 | 40FS62 | GE40DO | GE40ES |
| GE45ES | MB45 | SA1-45 | 45FS68 | GE45DO | GE45ES |
| GE50ES | MB50 | SA1-50 | 50FS75 | GE50DO | GE50ES |
| GE60ES | MB60 | SA1-60 | 60FS75 | GE60DO | GE60ES |
| GE70ES | MB70 | SA1-70 | 70FS105 | GE70DO | GE70ES |
| GE80ES | MB80 | SA1-80 | 80FS120 | GE80DO | GE80ES |
| GE90ES | MB90 | SA1-90 | 90FS130 | GE90DO | GE90ES |
| GE100ES | MB100 | SA1-100 | 100FS150 | GE100DO | GE100ES |
| GE110ES | MB110 | SA1-110 | 110FS160 | GE110DO | GE110ES |
| GE120ES | MB120 | SA1-120 | 120FS180 | GE120DO | GE120ES |
| GE140ES | MB140 | SA1-140 | 140FS210 | GE140DO | GE140ES |
| GE160ES | MB160-9L | SA1-160 | 160FS230 | GE160DO | GE160ES |
| GE180ES | MB180-9L | SA1-180 | 180FS260 | GE180DO | GE180ES |
| GE200ES | MB200-9L | SA1-200 | 200FS290 | GE200DO | GE200ES |
| GE220ES | MB220-9L | SA1-220 | 220FS320 | – | GE220ES |
| GE240ES | MB240-9L | SA1-240 | 240FS340 | – | GE240ES |
| GE260ES | MB260-9L | 260FS370 | – | GE260ES | |
| GE280ES | MB280-9L | 280FS400 | – | GE280ES | |
| GE300ES | MB300-9L | 300FS430 | – | GE300ES | |
| STANDARD DUTY RADIAL SPHERICAL PLAIN BEARING METRIC SEALED | |||||
| C&H/SKF | R.B.C. | NTN | TORRINGTON | ELGES | IKO |
| GE15ES-2RS | – | SA1-15 UU | 15S26-TT | – | GE15ES-2RS |
| GE17ES-2RS | MB17-SS | SA1-17 UU | 17FS30-TT | GE17DO-2RS | GE17ES-2RS |
| GE20ES-2RS | MB20-SS | SA1-20 UU | 20FS35-TT | GE20DO-2RS | GE120ES-2RS |
| GE25ES-2RS | MB25-SS | SA1-25 UU | 25FS42-TT | GE25DO-2RS | GE25ES-2RS |
| GE30ES-2RS | MB30-SS | SA1-30 UU | 30FS47-TT | GE30DO-2RS | GE30ES-2RS |
| GE35ES-2RS | MB35-SS | SA1-35 UU | 35FS55-TT | GE35DO-2RS | GE35ES-2RS |
| GE40ES-2RS | MB40-SS | SA1-40 UU | 40FS62-TT | GE40DO-2RS | GE40ES-2RS |
| GE45ES-2RS | MB45-SS | SA1-45 UU | 45FS68-TT | GE45DO-2RS | GE45ES-2RS |
| GE50ES-2RS | MB50-SS | SA1-50 UU | 50FS75-TT | GE50DO-2RS | GE50ES-2RS |
| GE60ES-2RS | MB60-SS | SA1-60 UU | 60FS90-TT | GE60DO-2RS | GE60ES-2RS |
| GE70ES-2RS | MB70-SS | SA1-70 UU | 70FS105-SS | GE70DO-2RS | GE70ES-2RS |
| GE80ES-2RS | MB80-SS | SA1-80 UU | 80FS120-SS | GE80DO-2RS | GE80ES-2RS |
| GE90ES-2RS | MB90-SS | SA1-90 UU | 90FS130-SS | GE90DO-2RS | GE90ES-2RS |
| GE100ES-2RS | MB100-SS | SA1-100 UU | 100FS150-SS | GE100DO-2RS | GE100ES-2RS |
| GE110ES-2RS | MB110-SS | SA1-110 UU | 110FS160-SS | GE110DO-2RS | GE110ES-2RS |
| GE120ES-2RS | MB120-SS | SA1-120 UU | 120FS180-SS | GE120DO-2RS | GE120ES-2RS |
| GE140ES-2RS | MB140-SS | SA1-140 UU | 140FS210-SS | GE140DO-2RS | GE140ES-2RS |
| GE160ES-2RS | MB160-9LSS | SA1-160 UU | 160FS230-SS | GE160DO-2RS | GE160ES-2RS |
| GE180ES-2RS | MB180-9LSS | SA1-180 UU | 180FS260-SS | GE180DO-2RS | GE180ES-2RS |
| GE200ES-2RS | MB200-9LSS | SA1-200 UU | 200FS290-SS | GE200DO-2RS | GE200ES-2RS |
| GE220ES-2RS | MB220-9LSS | SA1-220 UU | 220FS320-SS | GE220DO-2RS | GE220ES-2RS |
| GE240ES-2RS | MB240-9LSS | SA1-240 UU | 240FS340-SS | GE240DO-2RS | GE240ES-2RS |
| GE260ES-2RS | MB260-9LSS | 260FS370-SS | GE260DO-2RS | GE260ES-2RS | |
| GE280ES-2RS | MB280-9LSS | 280FS400-SS | GE280DO-2RS | GE280ES-2RS | |
| GE300ES-2RS | MB300-9LSS | 300FS430-SS | GE300DO-2RS | GE300ES-2RS | |
This interchange table shows approximate equivalency.It is not intended that all of manufacturers' products are functionally interchangeale in all applications.C&H reserves the right to change specifications and other information included in this catalog without notice.All information,data, and dimensions tables in this catalog have been carefully compiled and thoroughly checked. However, no responsibility for possible errors or omissions can be assumed.
