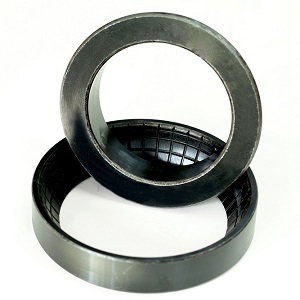

Angular contact spherical plain bearing-GAC..S
Quality bearing steel,hardened,precision ground sliding surface.Outer race is with two cross elliptical lubricating grooves. This bearing is phosphate treated prior to coating with a dry film lubricant for corrosion resistance.
PDF DOWNLOAD- Description
- Specification
- Application
- Cross No.
Design characteristics of angular contact spherical plain bearings requiring maintenance
Bearing rings of carbon chromium steel，hardened and phosphated，sliding surface treated with MoS2. Outer ring have groove and lubrication holes, sliding surface with two cross elllubrication grooves.
Bearing rings of carbon chromium steel，hardened and phosphated，sliding surface treated with MoS2. Outer ring have groove and lubrication holes, sliding surface with two cross elllubrication grooves.
Lurication grooves
 |
 |
 |
|

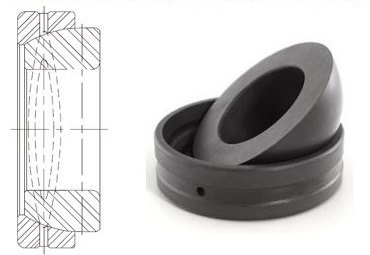

Angular contact spherical plain bearing with two cross elliptical grooves |

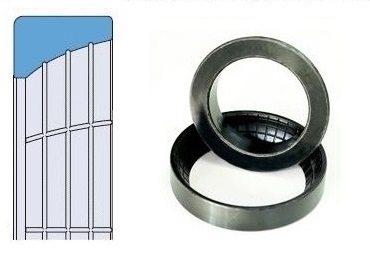

Angular contact spherical plain bearing with waffle grooves |

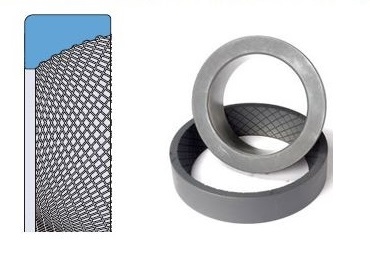

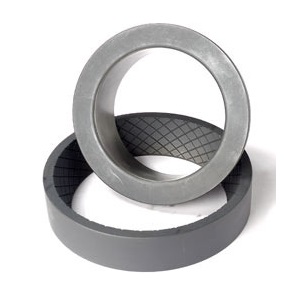

Angular contact spherical plain bearing with diamond thread grooves |

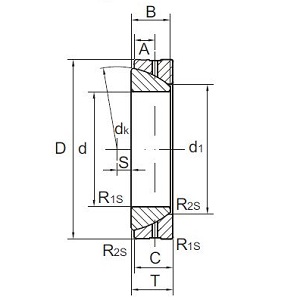

| Part | d | D | T | B | C | dK | Weight |
| Number | Inside | Outside | Overall | Inner Ring | Outer Ring | Spherical | |
| Diameter | Diameter | Height | Width | Width | Diameter | kg | |
| GAC25S | 25 | 47 | 15 | 14 | 14 | 42.5 | 0.13 |
| GAC28S | 28 | 52 | 16 | 15 | 15 | 47 | 0.17 |
| GAC30S | 30 | 55 | 17 | 16 | 16 | 50 | 0.21 |
| GAC32S | 32 | 58 | 17 | 17 | 16 | 52 | 0.24 |
| GAC35S | 35 | 62 | 18 | 17 | 17 | 56 | 0.27 |
| GAC40S | 40 | 68 | 19 | 18 | 18 | 60 | 0.32 |
| GAC45S | 45 | 75 | 20 | 19 | 19 | 66 | 0.41 |
| GAC50S | 50 | 80 | 20 | 19 | 19 | 74 | 0.45 |
| GAC55S | 55 | 90 | 23 | 22 | 22 | 80 | 1.67 |
| GAC60S | 60 | 95 | 23 | 22 | 22 | 86 | 0.72 |
| GAC65S | 65 | 100 | 23 | 22 | 22 | 92 | 0.76 |
| GAC70S | 70 | 110 | 25 | 24 | 24 | 102 | 1 |
| GAC75S | 75 | 115 | 25 | 25 | 24 | 107 | 1.1 |
| GAC80S | 80 | 125 | 29 | 27 | 27 | 115 | 1.5 |
| GAC85S | 85 | 130 | 29 | 29 | 26.5 | 122 | 1.6 |
| GAC90S | 90 | 140 | 32 | 30 | 30 | 130 | 2.1 |
| GAC95S | 95 | 145 | 32 | 32 | 29.5 | 135 | 2.2 |
| GAC100S | 100 | 150 | 32 | 30 | 30 | 140 | 2.3 |
| GAC105S | 105 | 160 | 35 | 35 | 32.5 | 148 | 2.9 |
| GAC110S | 110 | 170 | 38 | 36 | 36 | 160 | 3.6 |
| GAC120S | 120 | 180 | 38 | 36 | 36 | 170 | 3.9 |
| GAC130S | 130 | 200 | 45 | 42 | 42 | 190 | 5.9 |
| GAC140S | 140 | 210 | 45 | 42 | 42 | 200 | 6.3 |
| GAC150S | 150 | 225 | 48 | 45 | 45 | 213 | 7.7 |
| GAC160S | 160 | 240 | 51 | 48 | 48 | 225 | 9.4 |
| GAC170S | 170 | 260 | 57 | 54 | 54 | 250 | 12 |
| GAC180S | 180 | 280 | 64 | 61 | 61 | 260 | 17 |
| GAC190S | 190 | 290 | 64 | 61 | 61 | 275 | 18 |
| GAC200S | 200 | 310 | 70 | 66 | 66 | 290 | 22.5 |
|
ELGES
|
RBC
|
C&H/LS
|
OTHER
|
| GE25SX | MB25-SA | GAC25S | GAC25S/K |
| GE28SX | MB28-SA | GAC28S | GAC28S/K |
| GE30SX | MB30-SA | GAC30S | GAC30S/K |
| GE32SX | MB32-SA | GAC32S | GAC32S/K |
| GE35SX | MB35-SA | GAC35S | GAC35S/K |
| GE40SX | MB40-SA | GAC40S | GAC40S/K |
| GE45SX | MB45-SA | GAC45S | GAC45S/K |
| GE50SX | MB50-SA | GAC50S | GAC50S/K |
| GE55SX | MB55-SA | GAC55S | GAC55S/K |
| GE60SX | MB60-SA | GAC60S | GAC60S/K |
| GE65SX | MB65-SA | GAC65S | GAC65S/K |
| GE70SX | MB70-SA | GAC70S | GAC70S/K |
| GE75SX | MB75-SA | GAC75S | GAC75S/K |
| GE80SX | MB80-SA | GAC80S | GAC80S/K |
| GE85SX | MB85-SA | GAC85S | GAC85S/K |
| GE90SX | MB90-SA | GAC90S | GAC90S/K |
| GE95SX | MB95-SA | GAC95S | GAC95S/K |
| GE100SX | MB100-SA | GAC100S | GAC100S/K |
| GE105SX | MB105-SA | GAC105S | GAC105S/K |
| GE110SX | MB110-SA | GAC110S | GAC110S/K |
| GE120SX | MB120-SA | GAC120S | GAC120S/K |
| GE130SX | MB130-SA | GAC130S | GAC130S/K |
| GE140SX | MB140-SA | GAC140S | GAC140S/K |
| GE150SX | MB150-SA | GAC150S | GAC150S/K |
| GE160SX | MB160-SA | GAC160S | GAC160S/K |
| GE170SX | MB170-SA | GAC170S | GAC170S/K |
| GE180SX | MB180-SA | GAC180S | GAC180S/K |
| GE190SX | GAC190S | GAC190S/K | |
| GE200SX | GAC200S | GAC200S/K |
