Radial Spherical Plain Bearings requiring maintenance

Home > PRODUCTS > Plain bearings > Radial Spherical Plain Bearings requiring maintenance

COM...T & HCOM...T

PDF DOWNLOAD

COM & HCOM - Steel/Steel

Maintenance required
Outer race: carbon steel,cold formed around inner ring
Ball: GCr15 bearing steel, hardened HRC 58-64, precision ground, hard chrome plated

COM...T & HCOM...T - Steel/PTFE composie or PTFE fabric

Maintenance required
Outer race: carbon steel,cold formed around inner ring, line with PTFE composite or PTFE fabric
Ball: GCr15 bearing steel, hardened HRC 58-64, precision ground, hard chrome plated

SCOM - Steel/Steel

Maintenance required
Outer race: 300 series stainless steel ,cold formed around inner ring
Ball: 440C stainless steel, hardened, precision ground, hard chrome plated

SCOM...T - Steel/PTFE composite or PTFE fabric

Maintenance free
Outer race: 300 series stainless steel ,cold formed around inner ring
Ball: 440C stainless steel, hardened, precision ground, hard chrome plated

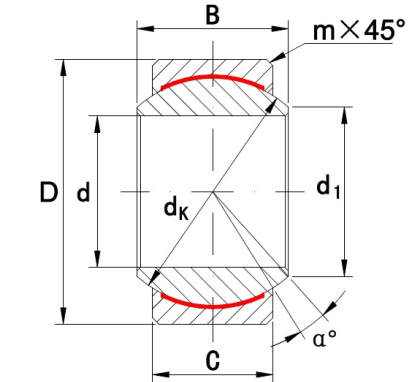

Part	d	D	B	C	dK	Weight
Number	Inside	Outside	Inner Ring	Outer Ring	Ball
	Diameter	Diameter	Width	Width	Diameter	kg
COM3T	4.826	14.29	7.14	5.54	10.31	0.006
COM4T	6.35	16.67	8.71	6.35	12.7	0.01
COM5T	7.938	19.05	9.53	7.14	14.27	0.014
COM6T	9.525	20.64	10.31	7.92	16.66	0.017
COM7T	11.113	23.02	11.1	8.71	17.45	0.021
COM8T	12.7	25.4	12.7	9.91	20.65	0.029
COM9T	14.288	27.78	14.27	11.1	23.01	0.039
COM10T	15.875	30.16	15.88	12.7	25.4	0.05
COM12T	19.05	36.51	19.05	15.06	30.15	0.093
COM14T	22.225	39.69	22.23	17.86	33.32	0.119
COM16T	25.4	44.45	25.4	20.24	38.1	0.175
HCOM16T	25.4	50.8	25.4	19.84	42.85	0.251
HCOM19T	30.163	60.33	30.15	23.8	50.8	0.406
HCOM20T	31.75	60.33	30.15	23.8	50.8	0.406
HCOM24T	38.1	69.85	34.93	27.79	58.72	0.616
HCOM28T	44.45	79.38	39.67	31.75	66.68	0.884
HCOM32T	50.8	88.9	44.45	34.93	74.6	1.198
