GE...HO-2RS series radial spherical bearing with an extended inner ring on both sides; can be relubricated via lubrication holes and an annular groove in both rings. For bearing arrangements where a spacer sleeve is normally incorporated on both sides of the inner ring. C&H supply all kinds of premium quality spherical plain bearing which is made by the high quality bearing steel, processed with advanced lathing and grinding machine, heat treated with advanced heat treatment lines.
PDF DOWNLOAD- Description
- Specification
- Application
- Cross No.

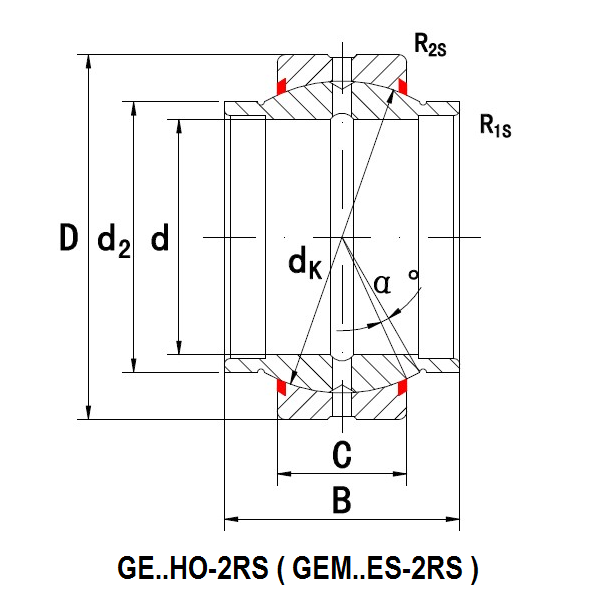

GE...HO Radial spherical plain bearing with an extended inner ring on both sides
|
• Sliding contact surfaces: Steel/Steel • Rings: GCr15(100Cr6,SAE52100), case hardened, surface phosphated • outer ring with single axial fracture • with lubrication holes and groove in both rings • sliding contact surfaces cated with molybdenum disulphide ( MoS2 ) • inside and outside diameters and outer ring width as GE..DO • cylindrical extensions on inner ring; As a result,spacers are not required if the bearing is fitted in a clevis • lip seals on both sides • for operating temperatures from –30 °C to +130 °C • for shaft diameters from 17 mm to 80 mm |
 |
| Part No | d | D | B | C | dK | weight |
| Inside | Outside | Inner Ring | Outer Ring | Spherical | ||
| Diameter | Diameter | Diameter | Diameter | Diameter | kg | |
| GE17HO-2RS | 17 -0.010 | 30 -0.011 | 21 ±0.2 | 10 -0.24 | 25 | 0.04 |
| GE20HO-2RS | 20 -0.010 | 35 -0.011 | 24 ±0.2 | 12 -0.24 | 29 | 0.069 |
| GE25HO-2RS | 25 -0.010 | 42 -0.011 | 29 ±0.3 | 16 -0.24 | 35.5 | 0.12 |
| GE30HO-2RS | 30 -0.010 | 47 -0.011 | 30 ±0.3 | 18 -0.24 | 40.7 | 0.15 |
| GE35HO-2RS | 35 -0.012 | 55 -0.013 | 35 ±0.3 | 20 -0.3 | 47 | 0.26 |
| GE40HO-2RS | 40 -0.012 | 62 -0.013 | 38 ±0.3 | 22 -0.3 | 53 | 0.32 |
| GE45HO-2RS | 45 -0.012 | 68 -0.013 | 40 ±0.3 | 25 -0.3 | 60 | 0.43 |
| GE50HO-2RS | 50 -0.012 | 75 -0.013 | 43 ±0.3 | 28 -0.3 | 66 | 0.55 |
| GE60HO-2RS | 60 -0.015 | 90 -0.015 | 54 ±0.3 | 36 -0.4 | 80 | 1.1 |
| GE70HO-2RS | 70 -0.015 | 105-0.015 | 65 ±0.3 | 40 -0.4 | 92 | 1.6 |
| GE80HO-2RS | 80 -0.015 | 120-0.015 | 74 ±0.3 | 45 -0.4 | 105 | 2.5 |
WARNING!
The manufacturer can not determine all applications of its prodcuts, it is up to the customer to determine a suitable part for their application. For assitance, please contact C&H Engineering Deparment.
| C&H | INA/EAGLES | SKF | CHINA |
| GE..HO-2RS | GE..HO-2RS | GEM..ES-2RS | GEEM..ES-2RS |
| GE20HO-2RS | GE20HO-2RS | GEM20ES-2RS | GEEM20ES-2RS |
| GE25HO-2RS | GE25HO-2RS | GEM25ES-2RS | GEEM25ES-2RS |
| GE30HO-2RS | GE30HO-2RS | GEM30ES-2RS | GEEM30ES-2RS |
| GE35HO-2RS | GE35HO-2RS | GEM35ES-2RS | GEEM35ES-2RS |
| GE40HO-2RS | GE40HO-2RS | GEM40ES-2RS | GEEM40ES-2RS |
| GE45HO-2RS | GE45HO-2RS | GEM45ES-2RS | GEEM45ES-2RS |
| GE50HO-2RS | GE50HO-2RS | GEM50ES-2RS | GEEM50ES-2RS |
| GE60HO-2RS | GE60HO-2RS | GEM60ES-2RS | GEEM60ES-2RS |
| GE70HO-2RS | GE70HO-2RS | GEM70ES-2RS | GEEM70ES-2RS |
| GE80HO-2RS | GE80HO-2RS | GEM80ES-2RS | GEEM80ES-2RS |
This interchange table shows approximate equivalency.It is not intended that all of manufacturers' products are functionally interchangeale in all applications.C&H reserves the right to change specifications and other information included in this catalog without notice.All information,data, and dimensions tables in this catalog have been carefully compiled and thoroughly checked. However, no responsibility for possible errors or omissions can be assumed.
